DUCATI eBIKE - TK01-RR LIMITED

DUCATI eBIKE - TK01-RR LIMITED

TK01RR_LIM_M
Készlet:
raktáron (szállítás 48 órán belül)

DUCATI DUCATI eBIKE
TK01-RR LIMITED

Ára: 4 900 000 Ft
Off road.
At top speeds.

The TK-01RR is pure adrenaline. An E-Enduro model geared towards the most extreme off-road, equipped with a Shimano EP8 engine with 85Nm of torque. Every element, from the geometries to the high-end components such as the 12-speed transmission and the 4-piston Shimano XT brakes, the 180 mm Öhlins RXF38 fork and the Öhlins TTX shock absorber, is geared to enhance performance in every situation, especially when the trails become harder and more technical.

For 2022 there is the Limited Edition version, an exclusive and refined model, produced in a limited number of units, which incorporates the main characteristics of the TK-01RR and has even more advanced components such as the Öhlins DH38 triple clamp race fork, multiple award winner in the Downhill MTB World Cup, to enhance downhill performance.

For 2022 the TK-01RR is also in a limited edition: a concentrate of technology that confirms the main features and attitude of the TK-01RR version, but enriched with more advanced components, with the aim of further improving performance, in particular in the downhill sections.

In a nutshell pure adrenaline: the best of Downhill but always efficient on the stretches to be pedaled.

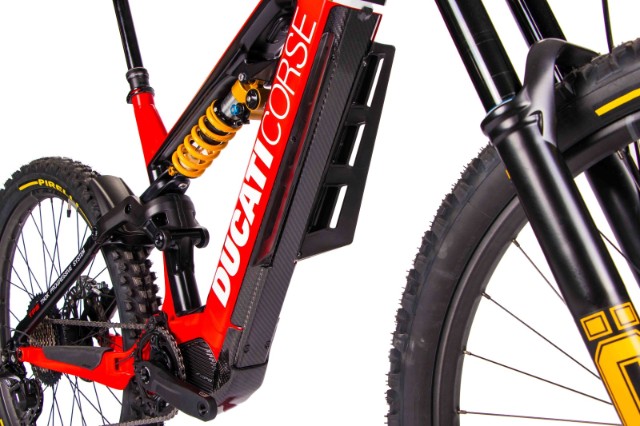

Double plate fork and Öhlins spring shock absorber

Same technology as the RXF38 but stiffer to ensure incredible wheel control on the ground in the most extreme conditions. The Öhlins DH38 180mm travel fork, developed in racing, is the benchmark in its category for its ability to absorb both small and large bumps while always maintaining a fluid, fast and controlled ride.

READ MORE
Wheels with carbon rims

Crankbrothers Synthesis always in differentiated format (29" x 31 mm front, 27.5" x 35 mm rear) with variable thickness carbon rims are smoother than the aluminium version supplied with the TK-01RR and help to improve further riding precision, guaranteeing an exceptional weight / strength ratio.

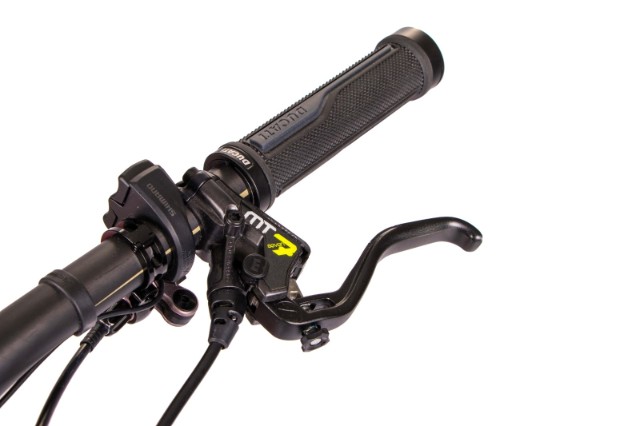

Magura MT7 brakes

4-piston aluminium monobloc with 220mm discs at the front and 203mm at the rear, they are of motorcycle origin and are among the most powerful on the market. The shape of the levers favour the ergonomics and are interchangeable.

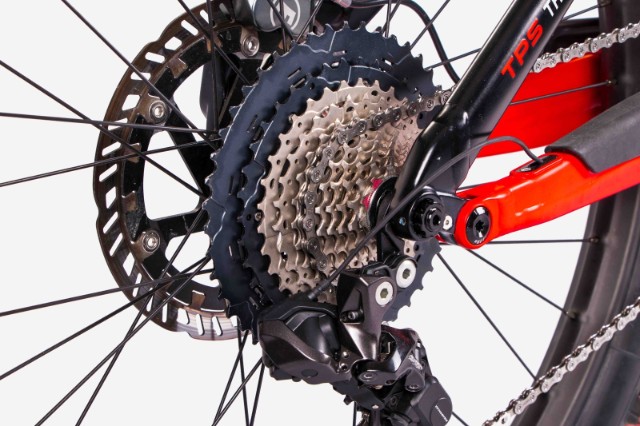

Shimano electronic gearshift

The 11-speed Shimano Di2 XT rear derailleur (11-46T) ensures precise and instant stable shifting on all types of terrain and reliable over time. The gear cage is equipped with Shadow RD+ technology, that is a clutch that minimizes chain slap. Through Shimano's E-Tube program, gearshifting can be programmed and customized.

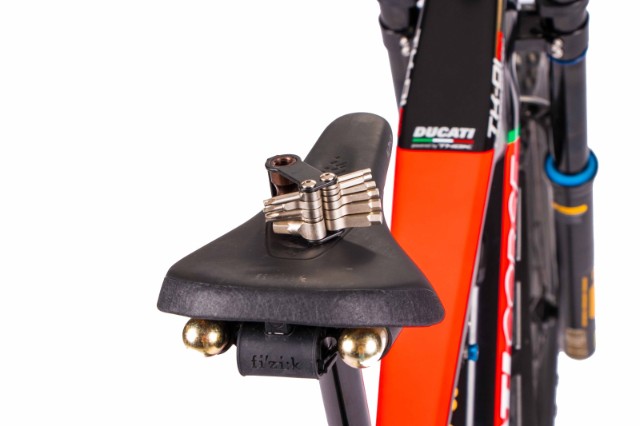

Fizik saddle with Alpaca Tool Carrier

With an innovative multitool system, characterized by a minimal design and where objects remain almost invisible under the saddle, but always ready in case of repair. The Crankbrothers Highline 7 dropper post with handlebar control always has a smooth and long-lasting operation.

Carbon components

The Renthal Fatbar handlebar, the battery cover and the carbon fibre engine guard, as well as being light and resistant, give further prestige to the model.

Technical features TK01-RRLTD

FRAME Thok 6061 Aluminium, forged and CNC machined, headtube tapared 1.8”
MOTOR Shimano Steps EP8 (250Watt - 85Nm)
BATTERY SHIMANO - Integrated da 630 Wh with switch ON/OFF Easy Touch
SUSPENSIONS Front: Öhlins – RXF DH38 Air, Boost - 29", 180 mm of travel,HS/LS compression and rebound adjust
Rear: Öhlins – TTX22M Coil- 170mm travel, custom tuned Ducati, metric 230 x 65 mm
BRAKE MAGURA- MT7, 4 pistons calipter with MDR-P rotor : 220 front and 203 mm rear
WHEELS

Crankbrothers - Synthesis carbon 29" x 31 mm, 27.5" x 35 mm

TIERS Front: PIRELLI Scorpion S E-MTB S, TR, SmartGrip, HyperWall 29"x2.6
Rear PIRELLI Scorpion S E-MTB S, TR, SmartGrip, HyperWall27,5 x 2.6
TRANSMISSION Shimano - Deore XT Di2 11 S 11-46T
TELESCOPIC SEATPOST Crankbrothers Highline 7

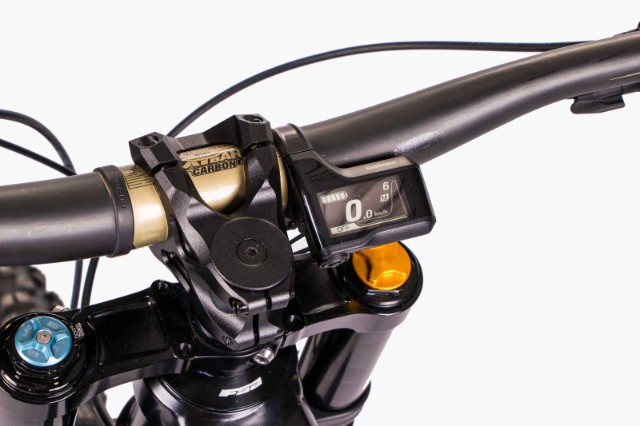

HANDLEBAR RENTHAL - Carbon 35 mm, rise 20mm, 800mm larghezza

.

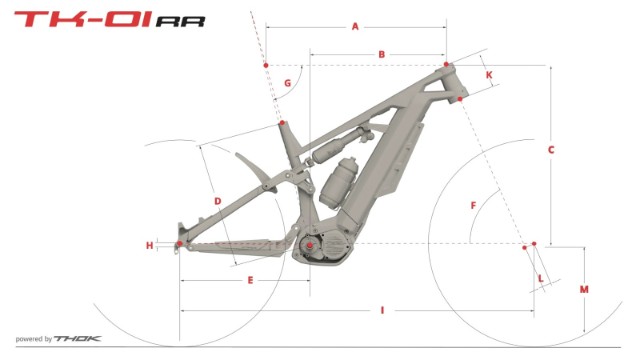

Geometries (mm) S M L XL
Top tube Length, horizzontal (mm) 582 600 629 660 A
Seat tube Length, center to top 385 415 450 495 D
ChainStay Length 453 453 453 453 E
Seat Tube Angle (°) 75,5° 75,5° 75,5° 75,5° G
Head Tube Angle (°) 64,5° 64,5° 64,5° 64,5° F
Head Tube Length 105 115 131 149 K
Wheel base 1212 1233 1265 1298 I
Stack 614 623 638 654 C
Reach 423 439 464 491 B
Handlebar width 800 800 800 800
Stem length 50 50 50 50
Crank Length 165 165 165 165
BB Height 355 355 355 355 M
Fork Offset 44 44 44 44 L



S

M

L

XL

154 - 167 cm 167 - 177 cm 177 - 184 cm 185 cm - over

This size table based on your height is only a suggestion. The optimal frame size also depends on other physical charactheristics and personal riding style.
